In aluminum and PVC/vinyl window, door, and curtain wall fabrication, one of the most critical — and most exacting — operations is the end milling of mullion and transom profiles. Before a mullion can be fitted into a frame, its end must be precisely milled to match the internal geometry of the outer profile, creating a tight, flush T-joint that holds structurally and seals reliably.
Done manually, this operation is slow and inconsistent. Done with the wrong machine, you get loose joints, visible gaps, and rework that kills your margins.
The POLAR-IV and POLAR-V from Oz Machine USA are purpose-built automatic end milling machines designed specifically for this application — milling the ends of aluminum and PVC/vinyl mullion and transom profiles so they seat cleanly into the surrounding frame. They share the same operating principles; what sets them apart is profile capacity, and that single difference determines which machine belongs in your shop.
What Is Mullion End Milling — and Why Does It Matter?
A mullion is the vertical (or horizontal, in which case it's often called a transom) dividing member that runs through the interior of a window, door, or curtain wall unit. Unlike the outer frame profiles, which are simply cut to length and joined at corners, mullion profiles must be end-milled: material is removed from the profile's end in a very specific pattern so that it slides into and locks against the inner cavity of the frame profile.
This notching operation has to be precise. The end-milled geometry must match the exact internal shape of the receiving frame profile — different system manufacturers use different geometries — and the fit must be tight enough to maintain weathertightness and structural integrity without gaps or play.
Getting this right manually requires a skilled operator, the right fixtures, and a lot of time. Getting it right automatically, on every cycle, is what the POLAR series is built for.
POLAR-IV: Automatic End Milling Machine for Aluminum & PVC/Vinyl Mullions
The POLAR-IV is Oz Machine USA's proven automatic end milling machine, engineered for aluminum and PVC/vinyl mullion profile processing in production fabrication environments.
Key Features

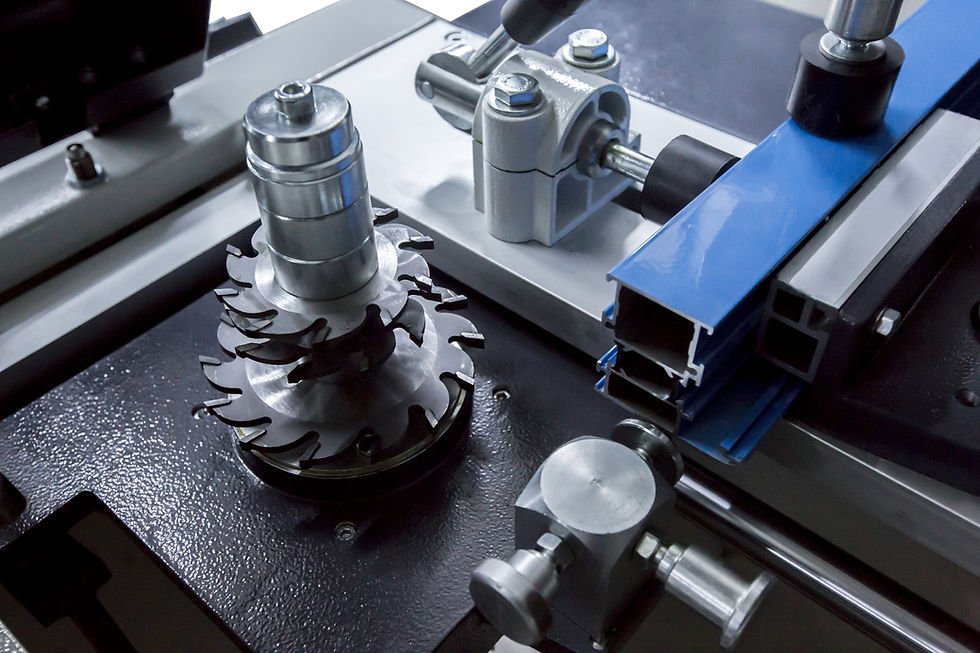

Hydro-pneumatic motion system — the cutting head advances under hydraulic force controlled by pneumatics, delivering consistent cutting pressure through the full depth of the mullion profile on every cycle
Pneumatic vertical and horizontal clamping — the profile is locked from two axes before the cut begins, eliminating movement and ensuring the milled geometry is exactly where it needs to be
Safety sensor-equipped cover — the machine will not cycle with the cover open; operators are protected without interrupting workflow
Automatic return to start position — after each cycle the head resets automatically, so the operator simply reloads and clamps the next profile
Multi-angle end milling via graded miter — supports end milling at various angles, useful for mullions that meet frames at non-90° configurations
Easy blade replacement — cutter changeouts are fast and straightforward, minimizing downtime when switching between profile systems
Profile support conveyor — long mullion profiles are supported during processing, preventing deflection and keeping the cut square
Blade holding station and blade adapter included as standard
Optional Equipment
Cutter set
Cooling system
Single-phase electrical system
The POLAR-IV handles profiles up to 8 1/4" wide and 3 9/16" high — covering the vast majority of standard residential and light commercial aluminum and PVC/vinyl mullion sections. It's a reliable, proven choice for fabricators who need consistent, repeatable mullion end milling without dedicated operator skill on every part.
POLAR-V: Automatic End Milling for Larger Mullion Profiles
The POLAR-V is the larger-capacity machine in the Polar series, built for fabricators who work with bigger mullion and transom profiles than the POLAR-IV can accommodate. Both machines share the same core design — automatic cycling, pneumatic clamping, hydro-pneumatic drive, safety sensor cover — but the POLAR-V's milling envelope is significantly larger.
The POLAR-V can handle profiles up to 10 13/16" wide and 7 1/16" high, making it the right choice for heavier commercial aluminum systems, large-format curtain wall mullions, and reinforced profiles that simply won't fit under the POLAR-IV's clamping area.
For fabricators working on commercial storefronts, curtain wall systems, or any project spec calling for deep or wide mullion sections, the POLAR-V is the machine that covers the range.
POLAR-IV vs. POLAR-V: Profile Capacity Is the Deciding Factor
The POLAR-IV and POLAR-V are functionally identical in how they operate — the real question is whether your profiles fit. Here's the capacity comparison:
POLAR-IV | POLAR-V | |
Max Profile Width | 8 1/4" (209 mm) | 10 13/16" (275 mm) |
Max Profile Height | 3 9/16" (90 mm) | 7 1/16" (180 mm) |
Application | Aluminum & PVC/vinyl mullion end milling | Aluminum & PVC/vinyl mullion end milling |
Drive System | Hydro-pneumatic | Hydro-pneumatic |
Clamping | Pneumatic (vertical + horizontal) | Pneumatic (vertical + horizontal) |
Angle Capability | Multi-angle with graded miter | Multi-angle with graded miter |
Safety Cover | Sensor-equipped | Sensor-equipped |
Optional Cooling | Yes | Yes |
Choose the POLAR-IV if your mullion profiles fall within 8 1/4" wide and 3 9/16" high. It covers the majority of standard residential and light commercial aluminum and PVC/vinyl window and door systems, and is the more compact, cost-effective choice for shops working within that range.
Choose the POLAR-V if your profile catalog includes sections wider than 8 1/4" or taller than 3 9/16" — for example, heavier commercial aluminum systems, large-format curtain wall mullions, or reinforced profiles. With a milling envelope of 10 13/16" wide by 7 1/16" high, the POLAR-V handles the profiles the IV simply cannot.
Not sure which fits your production setup? Oz Machine USA offers direct consultancy — their team can review your profile systems and recommend the right configuration.
The Business Case for Automating Mullion End Milling
For shops still notching mullions by hand or with semi-manual equipment, the productivity argument for automation is straightforward:
Repeatability on every part. Pneumatic clamping and an automatic cutting cycle mean every mullion is milled under exactly the same conditions — no variation from operator experience, fatigue, or fixture positioning. The hundredth part is as accurate as the first.
Faster throughput. The operator's job is reduced to loading, clamping, and unloading. The machine handles the feed, cut, and return automatically, so cycle times are consistent and predictable across a full shift.
Less scrap. Inconsistent manual notching is one of the most common sources of scrap mullion profiles. A tight, repeatable machine cycle dramatically reduces incomplete cuts, overtravel, and misaligned notches that send profiles to the bin.
Operator safety. The sensor-equipped safety cover on both POLAR models means the cutting cycle physically cannot start with the work area open — a meaningful upgrade over manually operated end milling tools.
About Oz Machine USA
Oz Machine USA is a Miami-based distributor of precision aluminum and PVC/vinyl profile fabrication equipment, serving fabricators across North America. With over 45 years of combined industry experience, their team helps shops select, configure, and support the right machines for their specific production systems.
The POLAR-IV and POLAR-V are available for purchase with flexible financing options. Oz Machine USA is a Thomas verified supplier.
📞 Toll-Free: 833-390-0060 📧 Email: info@ozmachineusa.com 🕐 Hours: Mon–Fri, 8am–4pm EST 📍 Location: 2690 W 3rd CT, Miami, FL 33010
Oz Machine USA also carries saws, copy routers, CNC routers, machining centers, corner crimping products, and PVC/vinyl machines — a complete equipment range for aluminum and vinyl profile fabrication shops.
